NFC Protocols Required for SoftPOS: The Complete Hardware Guide 2026
SoftPOS (Software Point of Sale) transforms a standard Android device into a contactless payment terminal using only software and the built‑in NFC antenna. But “any Android phone” is a myth. Payment providers like Trust Payments, CCV, and Elavon have published strict device requirements — and they apply to both consumer smartphones and enterprise tablets.
Here’s the full breakdown of softpos hardware requirements every UK merchant must verify before deployment:
What SoftPOS Actually Requires: The Hardware Checklist
1. NFC Protocol Stack (The Core Requirement)

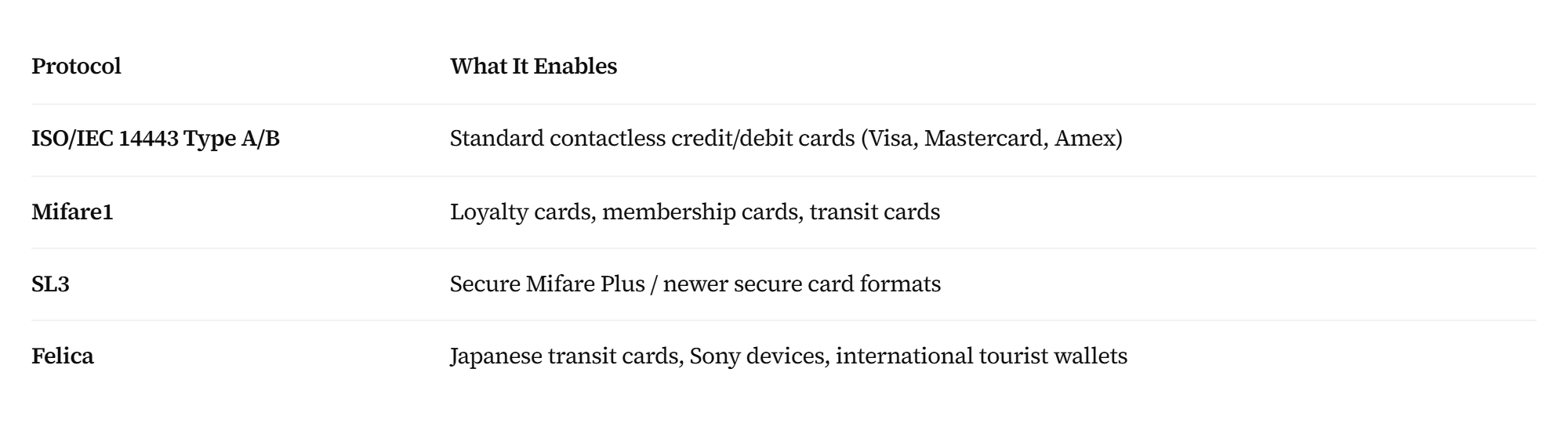

The device’s NFC chip must support the full suite of contactless payment protocols:
⚠️ Most consumer tablets only support basic peer‑to‑peer NFC tag reading. They are not EMV Level 1 certified — the gold standard payment providers like CCV recommend for enterprise SoftPOS devices.
2. Operating System & GMS Certification
- Minimum Android 12 — Trust Payments requires Android v12 or higher
- GMS Certified by Google — Mandatory for passing the Play Integrity API device attestation
- Hardware‑backed keystore — A Trusted Execution Environment (TEE) or Secure Element (SE) for cryptographic operations
- Not rooted, not tampered — SoftPOS apps refuse to run on compromised devices
3. Connectivity & Power
- Reliable internet — Either Wi‑Fi or 4G/5G cellular; offline transactions are not supported
- 8+ hours of active battery — A full UK retail shift demands 6000mAh or higher
- Regular security updates — CCV explicitly warns: if the last update is more than a year old, your device may no longer be supported
4. Enterprise‑Grade Additions
For commercial deployments (not just solo traders):
- EMV Level 1 certification — CCV recommends this for enterprise devices and anticipates it becoming mandatory
- MDM compatibility — For remote fleet management across multiple stores
- Peripheral interfaces — RJ12 for cash drawers, USB‑A for scanners/printers, LAN for wired stability
- 1D/2D barcode scanner — Integrated, not bolt‑on Bluetooth
Why the NORYOX TPAD 11″ Meets Every Requirement
The TPAD was engineered specifically against the SoftPOS hardware standard. Here’s the side‑by‑side:
| Hardware Requirement | Industry Standard | NORYOX TPAD 11″ |
|---|---|---|
| NFC protocols | ISO 14443 A/B, Mifare1, SL3, Felica | ✅ Full stack supported |
| EMV Level 1 | Recommended for enterprise | ✅ NFC controller enterprise‑grade |
| OS | Android 12+ | ✅ Android 14 |
| GMS | Mandatory | ✅ GMS certified |
| CPU/RAM | Enough for real‑time payments | ✅ 8‑core 2.0GHz, 6GB RAM |
| Battery | 8+ hour shift | ✅ 6000mAh pure cobalt, 8–10h |
| Cellular | 4G/5G for backup | ✅ 4G LTE with dual SIM (B1/3/5/7/8/20/28) |
| Scanner | Integrated 1D/2D | ✅ Built‑in |
| Ports | RJ12, USB‑A, LAN | ✅ 3× USB‑A + RJ12 + LAN |
| MDM | Fleet management | ✅ Full MDM + SDK support |
The TPAD isn’t just “compatible” with SoftPOS — it’s SoftPOS‑ready by design. Pre‑installed Android 14 with GMS certification means Visa Tap to Pay, Phos, Tyl by NatWest, and other UK SoftPOS apps install and run without modification.
UK‑Specific Considerations for 2026
The UK SoftPOS landscape shifted in March 2026: the FCA removed the mandatory £100 contactless cap, letting banks set their own limits. As of mid‑2026, most high‑street banks are holding at £100 voluntarily — but the direction is clear. For merchants, this means:
- Your NFC hardware must be future‑proof. Felica and SL3 support ensures compatibility as card schemes evolve
- Your device must stay updated. Android 14 + GMS means you receive Google’s security patches promptly
- Your battery must sustain longer shifts. As transactions grow in value and volume, the 6000mAh pure cobalt battery in the TPAD delivers the 8–10 hour uptime UK retailers need
Major UK acquirers — Stripe, SumUp, Revolut Business, Tide, myPOS — all offer Tap to Pay on Android. Every one of them requires the device checklist above. The TPAD passes all of them.
FAQ
Q: What NFC protocols are absolutely required for SoftPOS?
A: At minimum, ISO/IEC 14443 Type A and B plus Mifare1. For full compatibility — including Felica for international visitors and SL3 for newer secure cards — the complete protocol stack is recommended. The NORYOX TPAD 11″ supports all four.
Q: Is Android 12 enough, or do I need Android 14?
A: Android 12 is the minimum for most UK SoftPOS apps. Android 14 (like the TPAD) is recommended because it receives longer security support and passes Google’s latest Play Integrity API “strong integrity” checks required by Android 13+.
Q: Do I need EMV Level 1 certification?
A: For consumer‑grade SoftPOS (solo traders, pop‑up stalls), it’s not strictly mandatory. For enterprise deployments across multiple stores, CCV and other providers strongly recommend EMV Level 1 certified NFC controllers. The TPAD’s NFC module is built to enterprise standards.
Q: Can I use a normal Android tablet with SoftPOS?
A: Technically yes, if it has full NFC protocols and GMS certification. But most consumer tablets fall short on both. For a detailed comparison, see our previous article: Can I Use a Normal Android Tablet as a POS Machine in the UK?
Q: How long does device attestation take?
A: The first‑launch attestation check takes about 30 seconds. After that, the SoftPOS app continuously monitors device integrity in the background. The TPAD’s hardware‑backed keystore ensures attestation passes every time.
Q: Does the TPAD support MDM for multi‑store rollouts?
A: Yes. The TPAD includes full MDM support and SDK access, allowing remote app deployment, policy enforcement, and fleet health monitoring across hundreds of devices.
Conclusion
Choosing SoftPOS hardware isn’t about finding “any Android tablet with NFC.” It’s about verifying a precise stack: full‑protocol NFC, GMS certification, Android 12+, hardware‑backed security, and enterprise interfaces. Most consumer devices fail one or more of these checks.
The NORYOX TPAD 11″ was built to the SoftPOS hardware standard — not adapted to it. With its full NFC protocol stack, Android 14 GMS certification, 6000mAh battery, integrated scanner, and rich peripheral ports, it’s a purpose‑engineered platform for UK retailers ready to deploy SoftPOS at scale.
Ready to evaluate the TPAD for your UK SoftPOS deployment?
